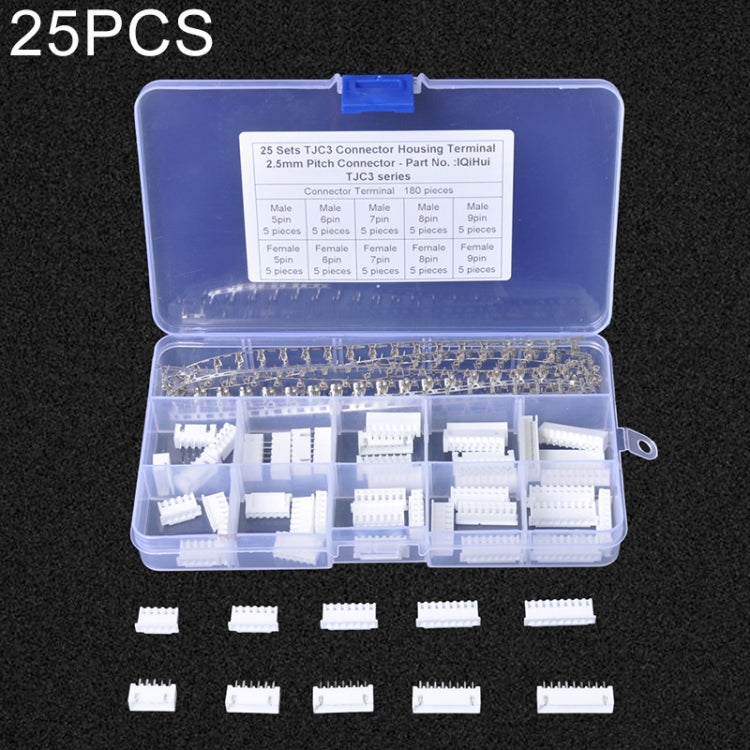

25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
Normaler Preis
$0.89 USD
Normaler Preis
Verkaufspreis
$0.89 USD
Grundpreis
/
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
1. Pitch: 2.5mm
2. Rated voltage: 250V AC,DC
3. Rated current: 3A AC,DC
4. Contact resistance: 10M Ohm max
5. Insulation resistance: 1000M Ohm min
6. Withstanding Voltage: 1000V AC/minute
7. Ambient temperature: -25 ~ +85 Celsius degree
8. Wire Range : AWG#28~#22
9. Material:
Housing: Nylon UL94-V0(2)
Terminal: Phosphor bronze, Tin plated
Package:
5pin = 5 sets
6pin = 5 sets
7pin = 5 sets
8pin = 5 sets
9pin = 5 sets

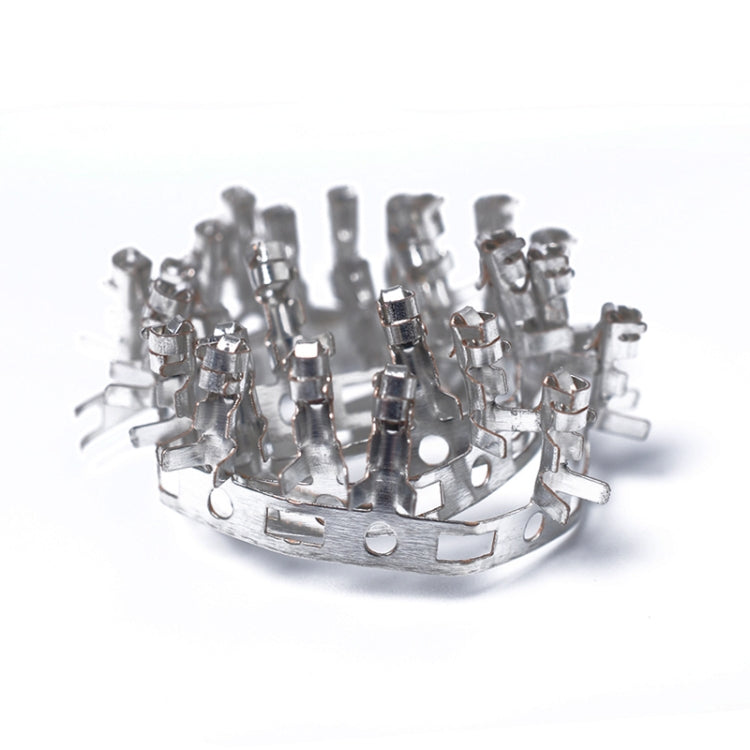

Pin Connector Terminal :180 pcs
2. Rated voltage: 250V AC,DC
3. Rated current: 3A AC,DC
4. Contact resistance: 10M Ohm max
5. Insulation resistance: 1000M Ohm min
6. Withstanding Voltage: 1000V AC/minute
7. Ambient temperature: -25 ~ +85 Celsius degree
8. Wire Range : AWG#28~#22
9. Material:
Housing: Nylon UL94-V0(2)
Terminal: Phosphor bronze, Tin plated
Package:
5pin = 5 sets
6pin = 5 sets
7pin = 5 sets
8pin = 5 sets
9pin = 5 sets
Pin Connector Terminal :180 pcs
Specification:
