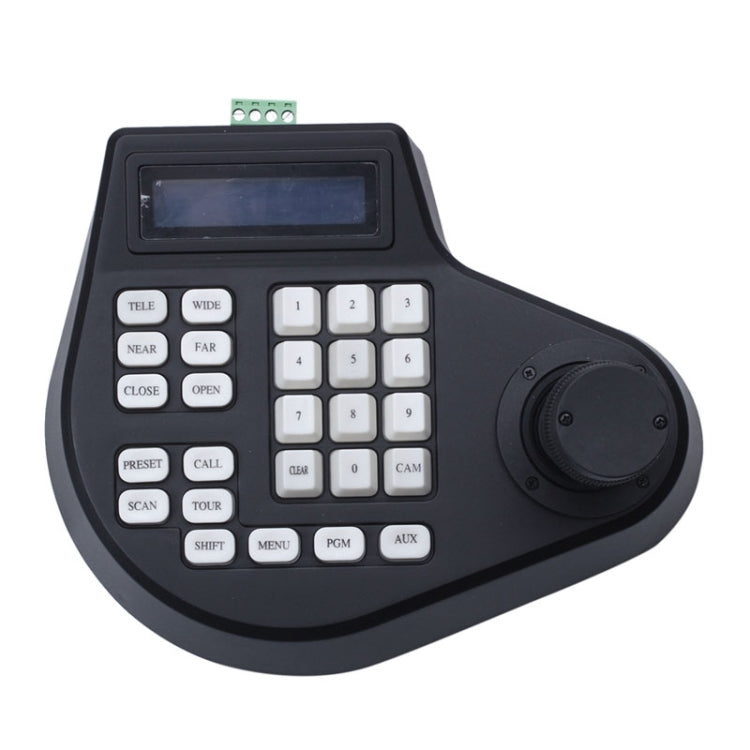

8003H Analog Coaxial Dome Control Keyboard RS485 PTZ, Specification:3 Axis(US Plug)

1. Multi-functional design, can realize the setting and calling of camera head, high-speed dome, constant speed dome, low-speed dome, lens control and preset point

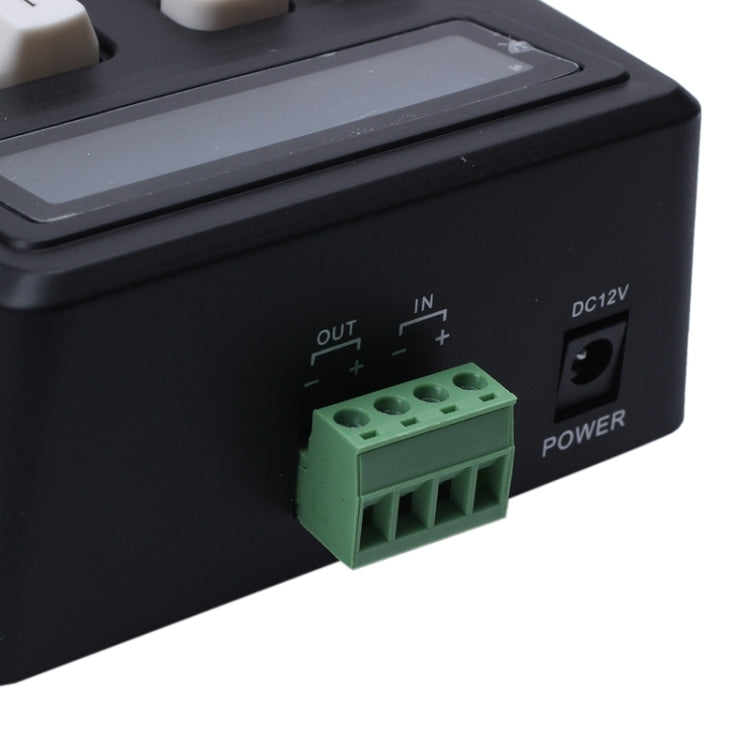

2. Input voltage: DC12V/500mA
3. Power consumption: less than 5W

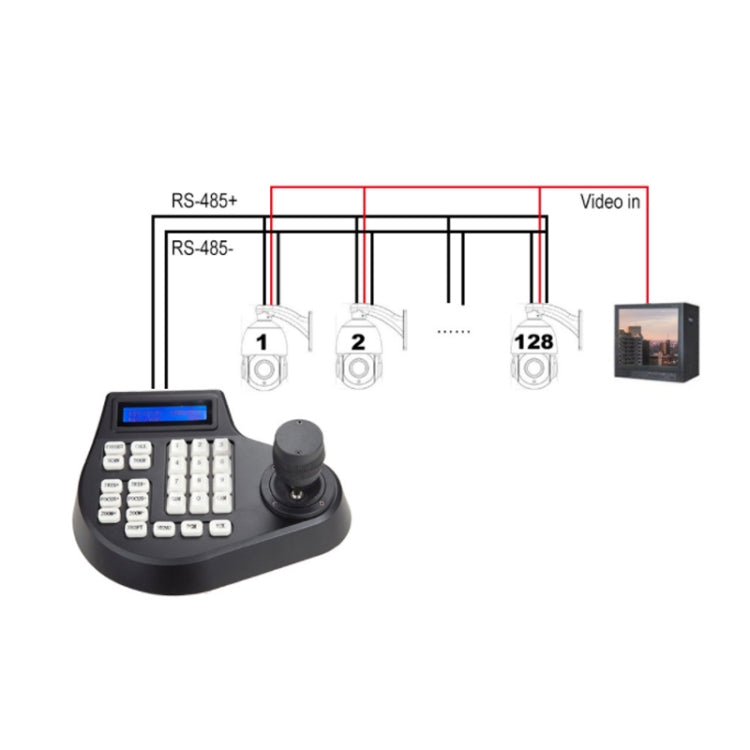

4. Communication interface: RS485 bus
5. Communication distance: 1500m (0.5mm twisted pair)
6. Communication protocol: PELCO-D, PELCO-P, SAMSUNG, AD, PANASONIC
7. Baud rate: 9600
8. Communication parameters: 8 data bits, 1 stop bit, no parity

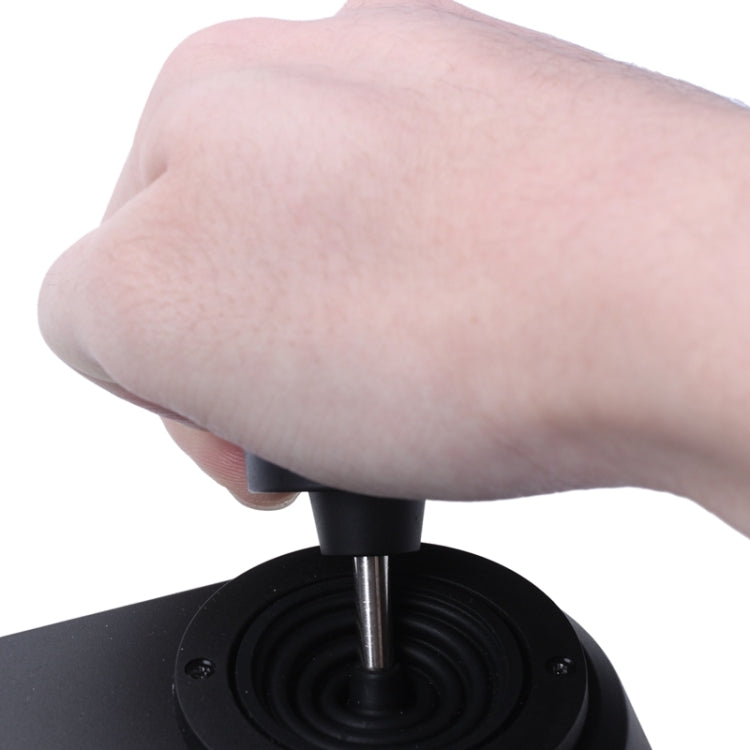

9. Joystick:
- 2 axis: joystick to control the ball machine up and down, left and right

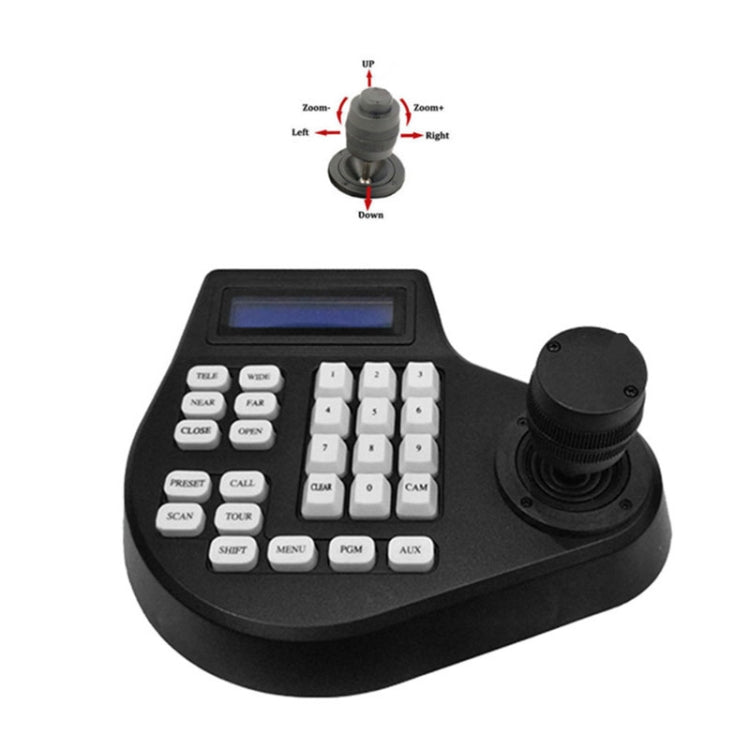

- 3 axis: joystick control ball machine up and down, twist the joystick ball machine can be zoomed
- 4 axis: joystick control the ball machine up and down, twist the joystick ball machine can be zoomed, joystick more OK button
10. Display: LCD
11. Weight: about 890g
