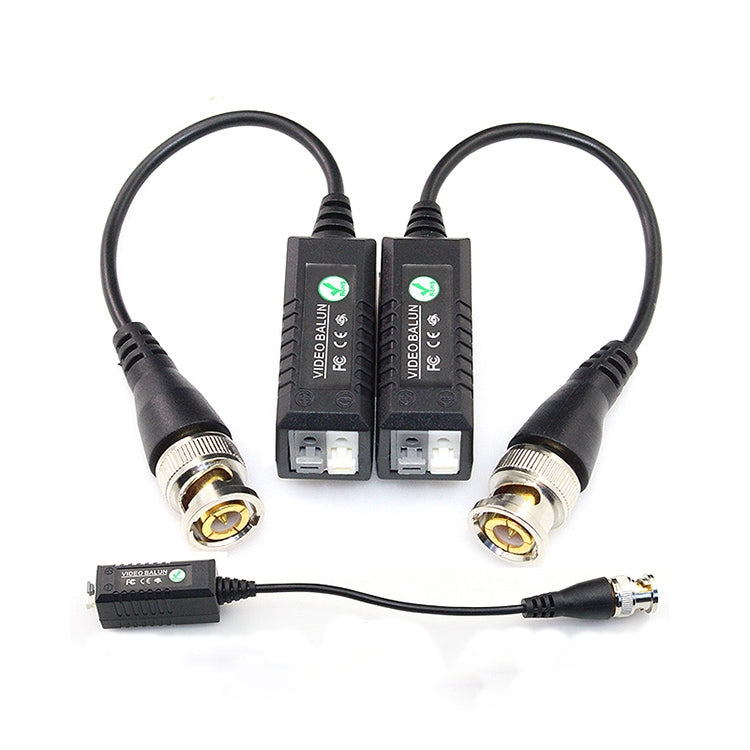

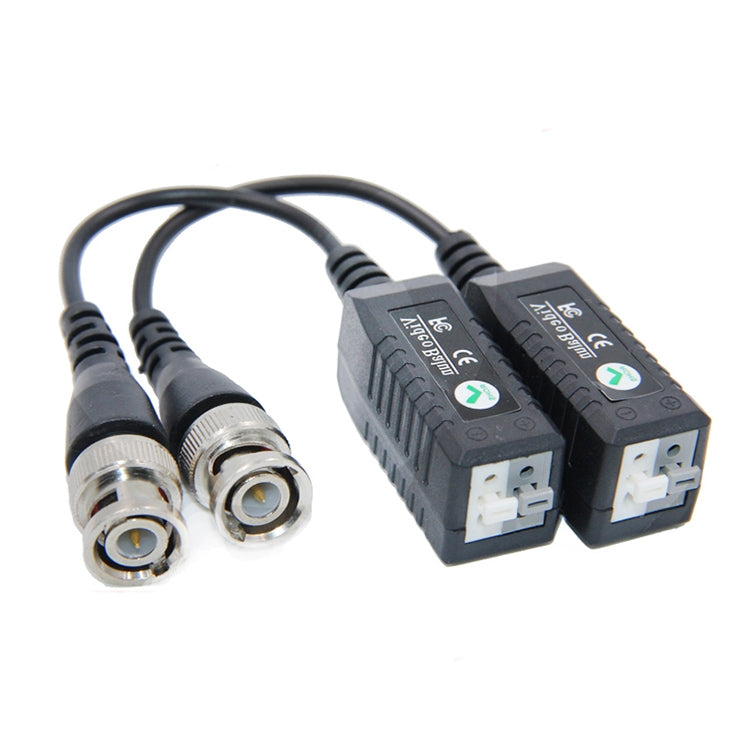

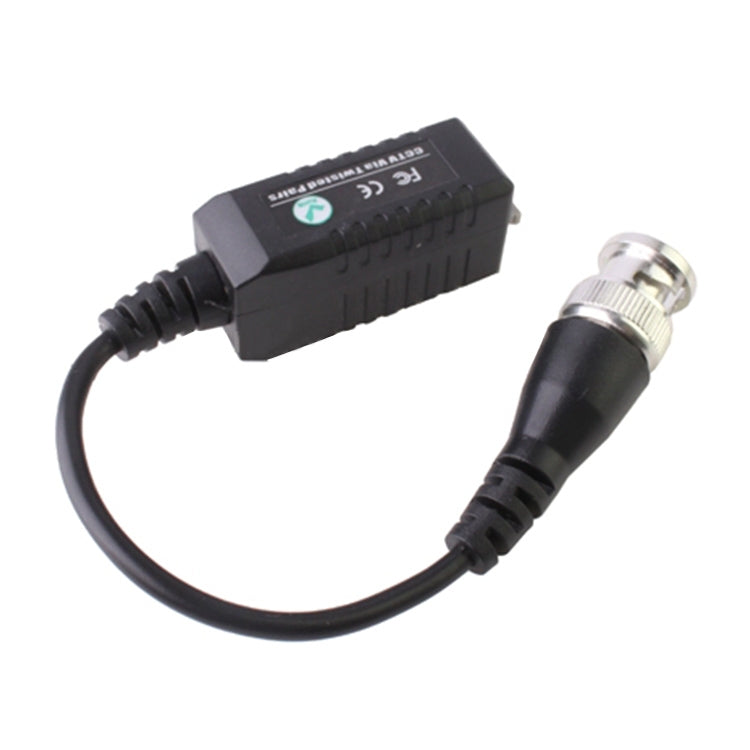

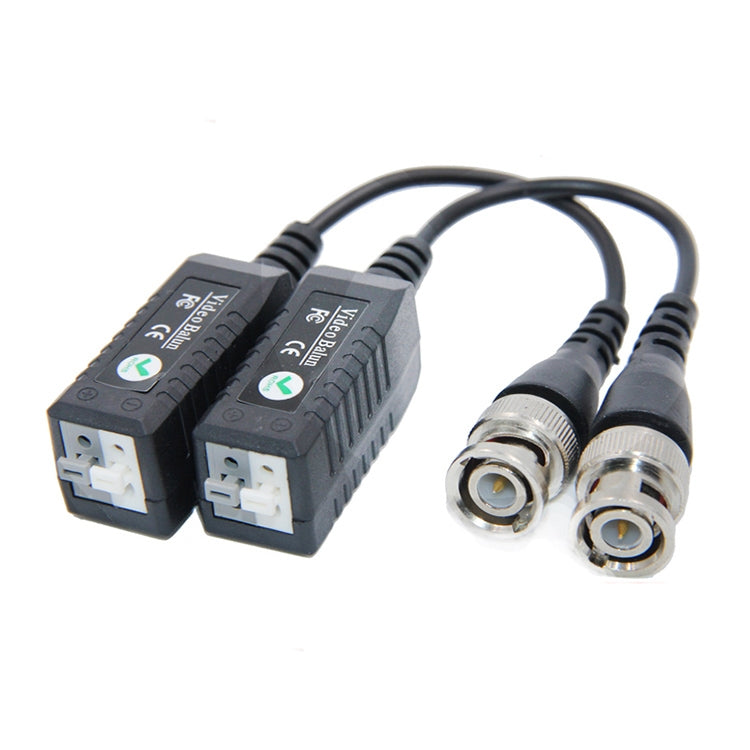

CCTV Via Twisted Pairs Passive UTP Video Transceiver(Black)
- Regular price
- $1.76 USD
- Regular price
-
- Sale price
- $1.76 USD
- Unit price
- per
Couldn't load pickup availability
Guaranteed safe checkout
Have a question?
Notified by email when this product becomes available
- Description
Features:
1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP Video receiver

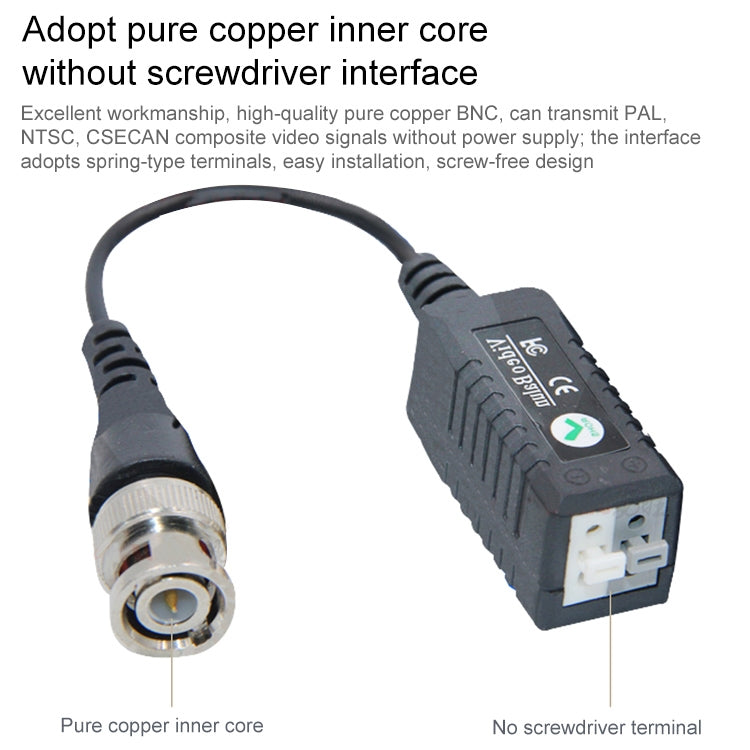

3. "Press-Fit" terminal block
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size and easy installation
Technical Specifications:
1. Frequency response: DC to 8MHZ
2. Attenuation: 0.5dB typ
3. Impedance: BNC:75 ohms, CMRR: 60dB; Terminal: 100 ohms
4. Working Temperature: -10 degree C to + 70 degree C
5. Storage Temperature: -30 degree C to + 70 degree C
6. Humidity: 0 to 95%
7. Dimension: 39mm x 16mm x 19mm
1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP Video receiver
3. "Press-Fit" terminal block
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size and easy installation
Technical Specifications:
1. Frequency response: DC to 8MHZ
2. Attenuation: 0.5dB typ
3. Impedance: BNC:75 ohms, CMRR: 60dB; Terminal: 100 ohms
4. Working Temperature: -10 degree C to + 70 degree C
5. Storage Temperature: -30 degree C to + 70 degree C
6. Humidity: 0 to 95%
7. Dimension: 39mm x 16mm x 19mm
Specification:
| Package Weight |
|
