- Description
1. High speed, low noise, long life
2. High temperature resistance, high precision, excellent products

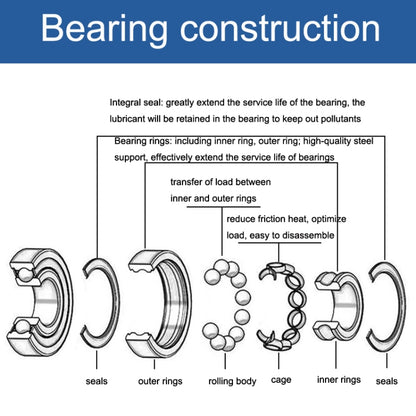

3. Bearing ring: contains inner ring and outer ring; high quality steel support, high efficiency to extend bearing life
4. Rolling body: transfer the load between inner and outer ring
5. Cage: reduce friction heat, optimize the load, easy to disassemble
6. Integral seal: greatly prolong the bearing life, keep the lubricant inside the bearing to keep the contaminants out
Parameters:
1. Model: 6006ZZ

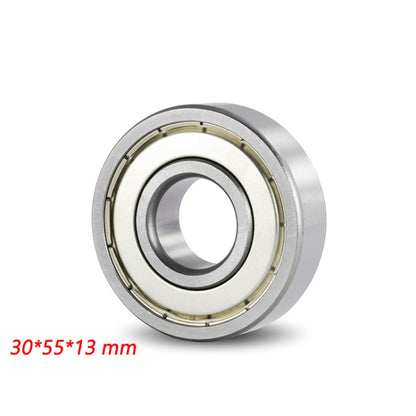

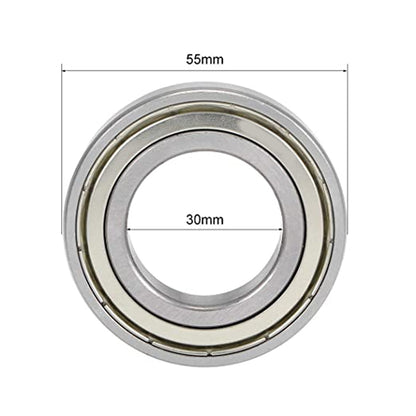

2. Size: 30mm inner diameter x 55mm outer diameter x 13mm width
3. Precision grade: P0
4. Cage and material: J steel plate stamping
5. Cr (kN): 13,200
6. Cor (kN): 8300
7. Grease lubrication limit speed (rpm): 13
8. Oil lubrication limit speed (rpm): 15
1. Model: S6006ZZ
2. Dimensions: Inner diameter 30mm x outer diameter 55mm x width 13mm
3. Precision grade: P0
4. Cage and material: stainless steel
Specification:
