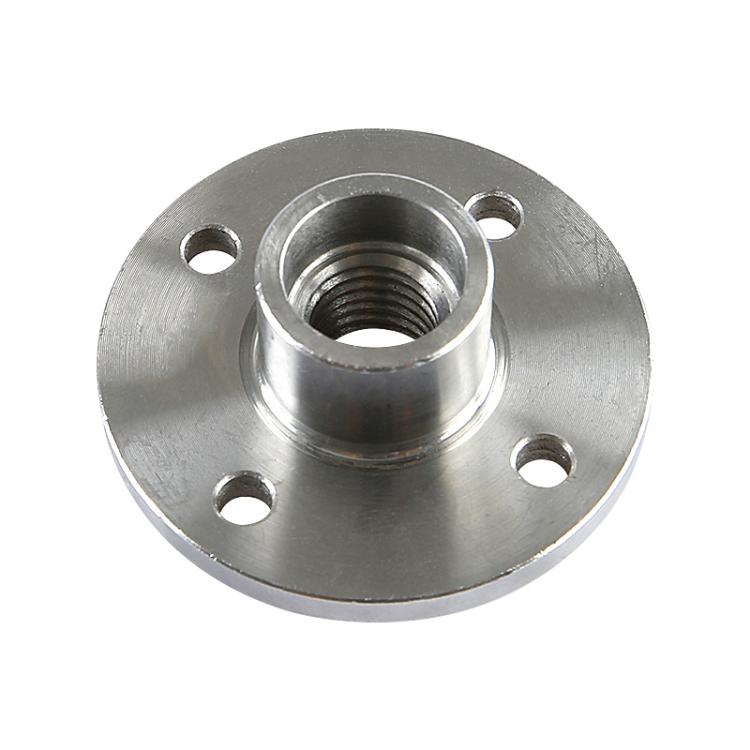

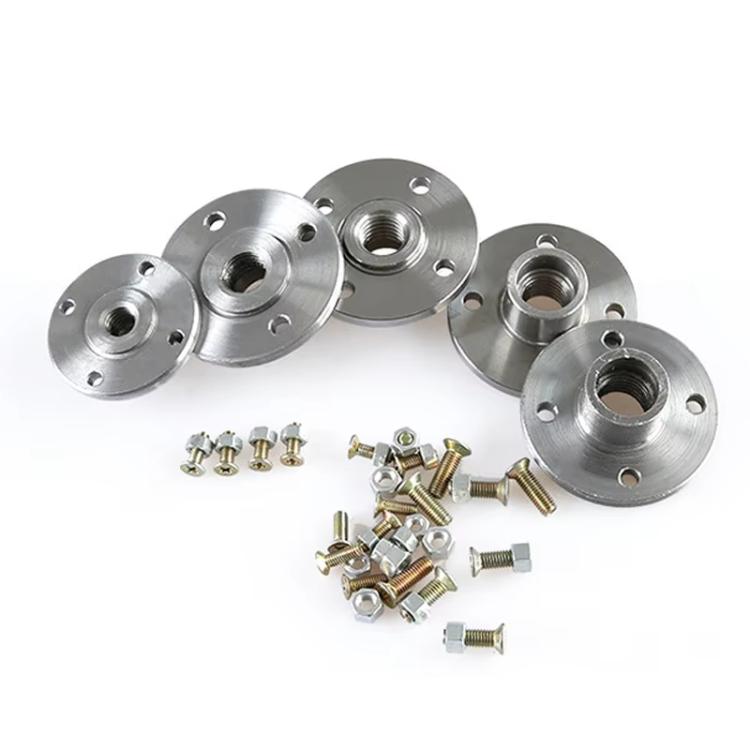

Angle Grinder Cutting Disc Positioning Plate Flange Plate Fixing Screw Clamp, M10 20mm Hole, M14 22mm Hole, M14 25.4mm Hole, M16 22mm Hole

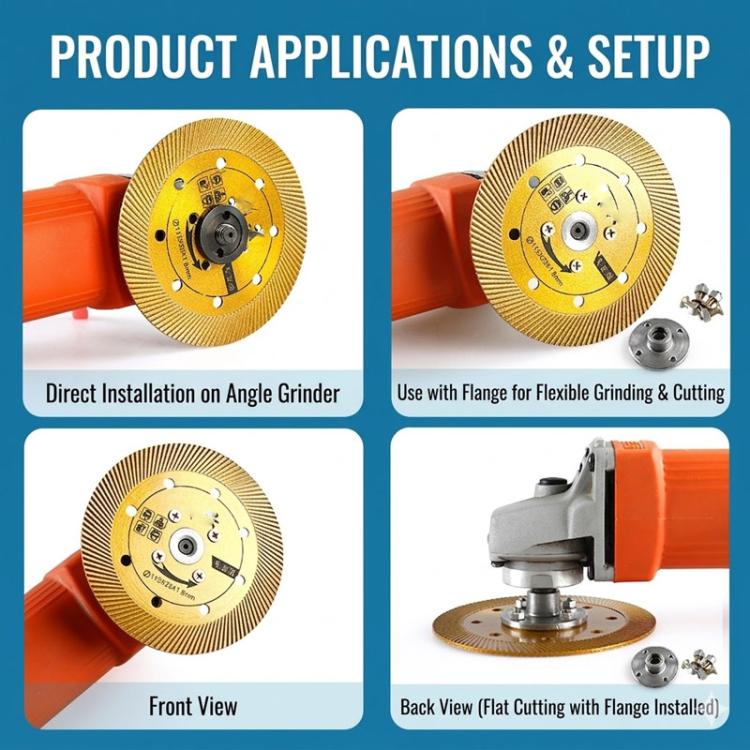

1. When using, select a flange with the appropriate bore diameter based on the angle grinder’s thread and the saw blade’s bore diameter
2. The diameter of the flange’s raised inner ring = the saw blade’s bore diameter
3. For saw blades up to 120mm, the standard bore diameter is 20mm
4. For saw blades up to 250mm, the standard bore diameters are 22mm or 25.4mm

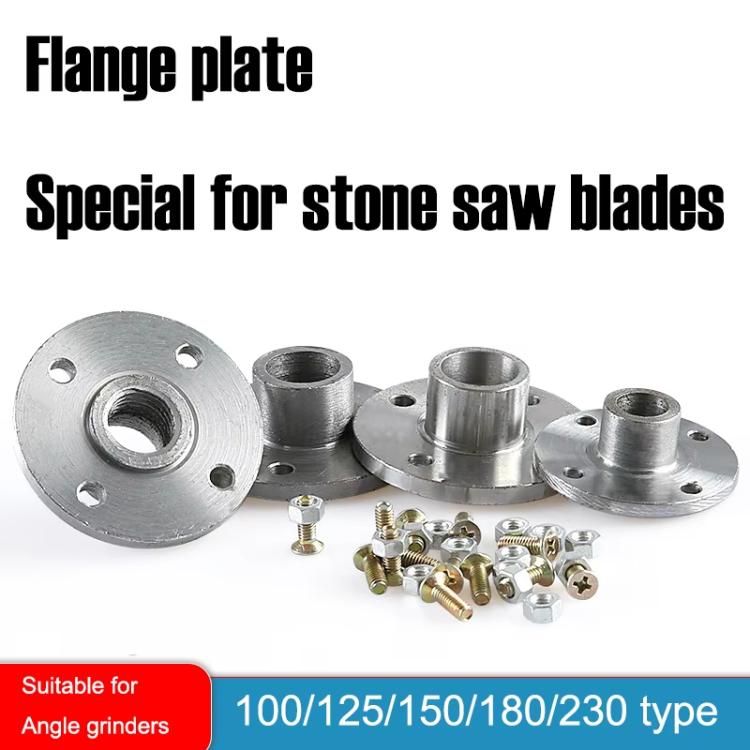

5. Compatible angle grinders: 100 series / 125 series / 150 series / 180 series / 230 series

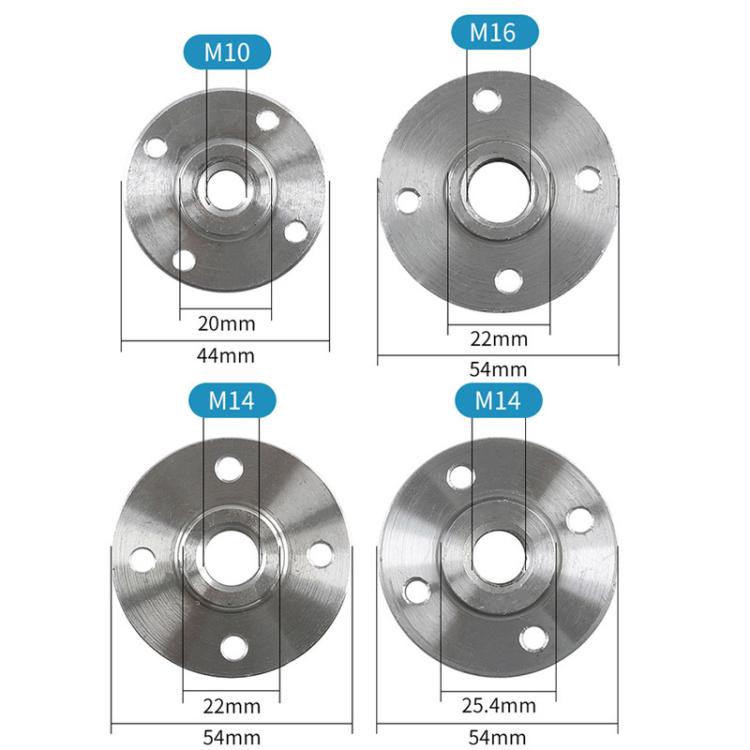

6. Diameter: about 54mm (M10 model: about 44mm)
