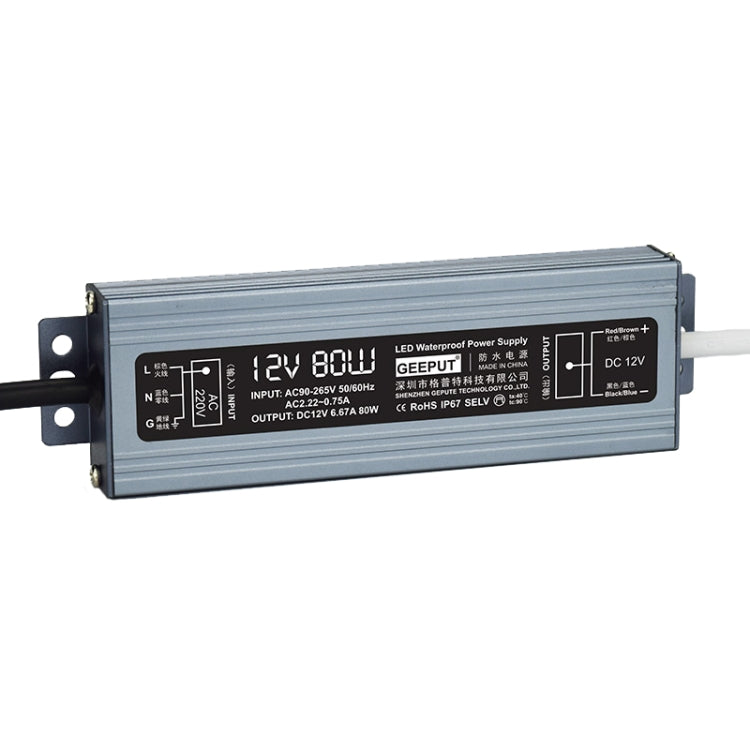

GEEPUT 220V Turn 12V LED Waterproof Power Supply Transformer, Model: 6.67A 80W

1. Material: shell aluminum
2. Waterproof rating: IP67
3. Rated input: AC 220V 50/60Hz
4. Output voltage: DC 12V
5. Output power: 20/30/40/50/60/80/100/120/150/200/250/300/350/400/450/500/550/600W
6. Output current: 20W 1.67A, 30W 2.5A, 40W 3.33A, 50W 4.16A, 60W 5A, 80W 6.67A, 100W 8.33A, 120W 10A, 150W 12.5A, 200W 16.7A, 21A 250W, 300W 25A, 350W 29A, 400W 33.4A, 450W 37.5A, 500W 41.7A, 550W 46A, 600W 50A
7. Protection function: short circuit, over voltage, overload, over current
8. Output circuit: 20/30/40/50/60/80/100/120/150W one set, 200/250/300/350/400/450/500/550/600W two sets

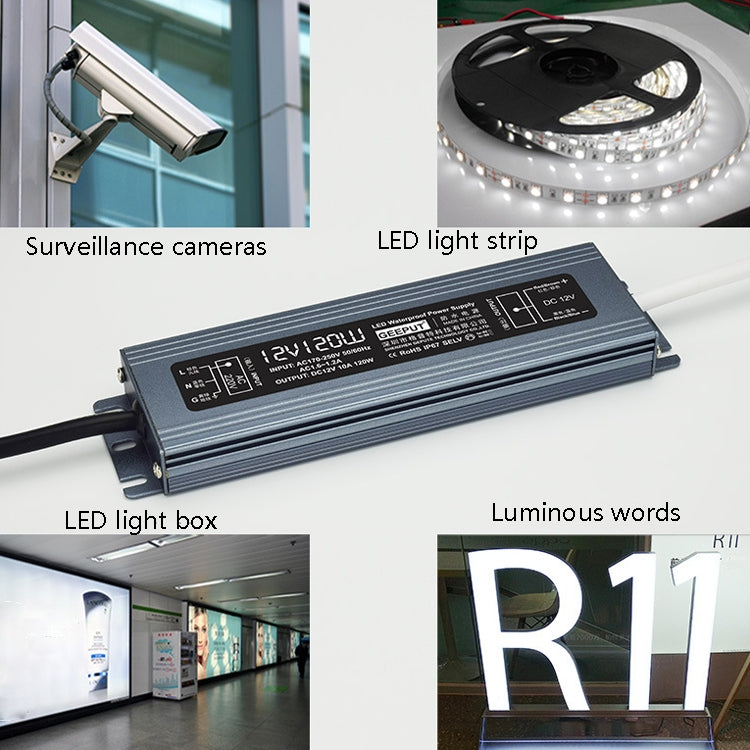

9. Applications: LED, advertising lights, cameras, displays, etc.
10. Wiring mode: AC input wire (brown L live wire, blue N neutral wire, yellow and green two-color ground wire), DC output wire (brown/red +V positive pole, blue/black -V negative pole)
11. Note: the product has built-in rectifier circuit, the input terminal zero wire and live wire can be connected indiscriminately; the output terminal +V and -V connect to the LED light, if the light is not on, reverse +V and -V.
12. Note: heating wire, halogen lamp, xenon lamp, electric actuator are not applicable
13. Wire length: 20/30/40/50/60/80/100/120/150/200/250/300/350W about 17cm, 400/450/500/550/600W about 23cm

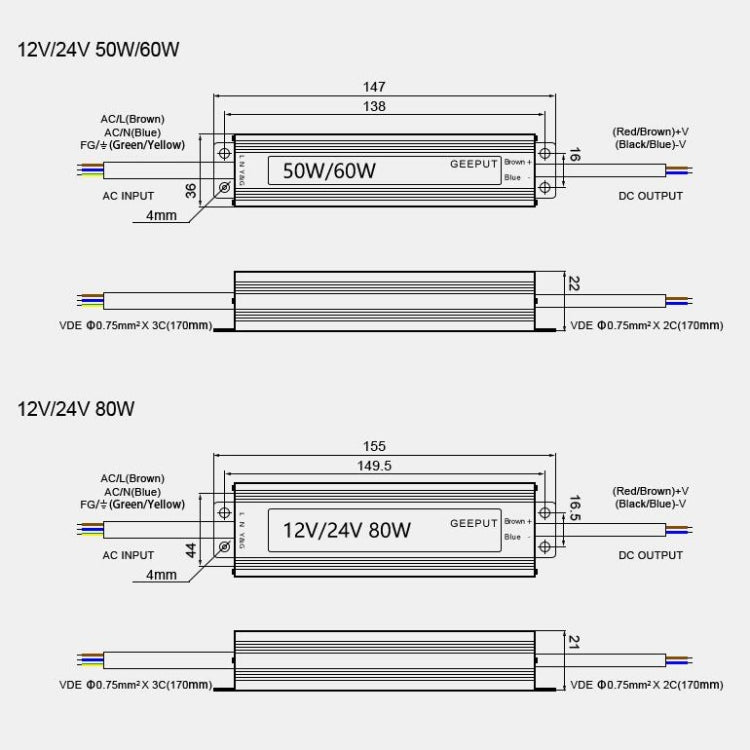

14. Size: 20W about 11.2x3x2.2cm, 30/40W about 12.2x3.7x2.2cm, 50/60W about 14.7x3.6x2.2cm, 80W about 15.5x4.4x2.1cm, 100/120W About 19.1x5.3x1.9cm, 150W about 21.6x5.3x1.9cm, 200/250W about 21.5x6.5x2.7cm, 300/350W about 23.1x7.1x4.4cm, 400/450/500W about 26x10 .2x3.8cm, about 29x10.2x3.8cm for 550/600W
15. Weight: 20W about 140g, 30/40W about 180g, 50/60W about 210g, 80W about 260g, 100/120W about 370g, 150W about 420g, 200/250W about 710g, 300/350W 1100g for 400/450/500W, 1800g for 550/600W, 2200g for 550/600W

Features:

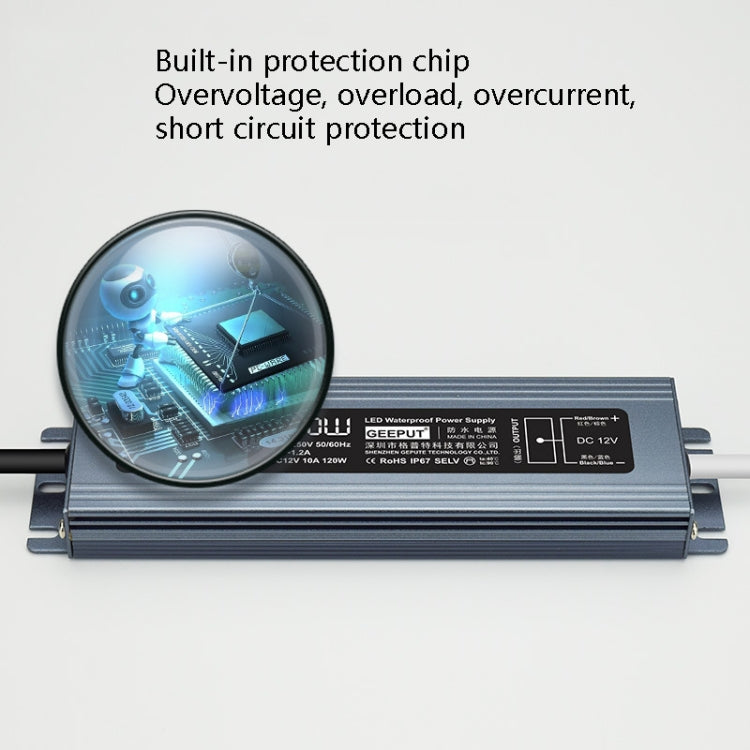

1. Built-in protection chip, over voltage, overload, over current, short circuit protection

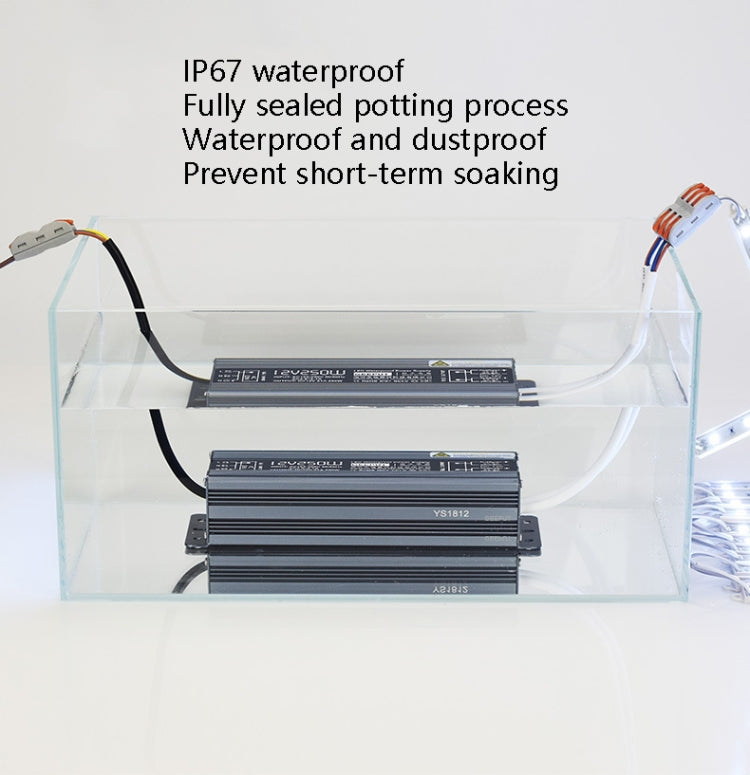

2. IP67 level waterproof, fully sealed potting process, waterproof and dustproof, and prevent short-term soaking

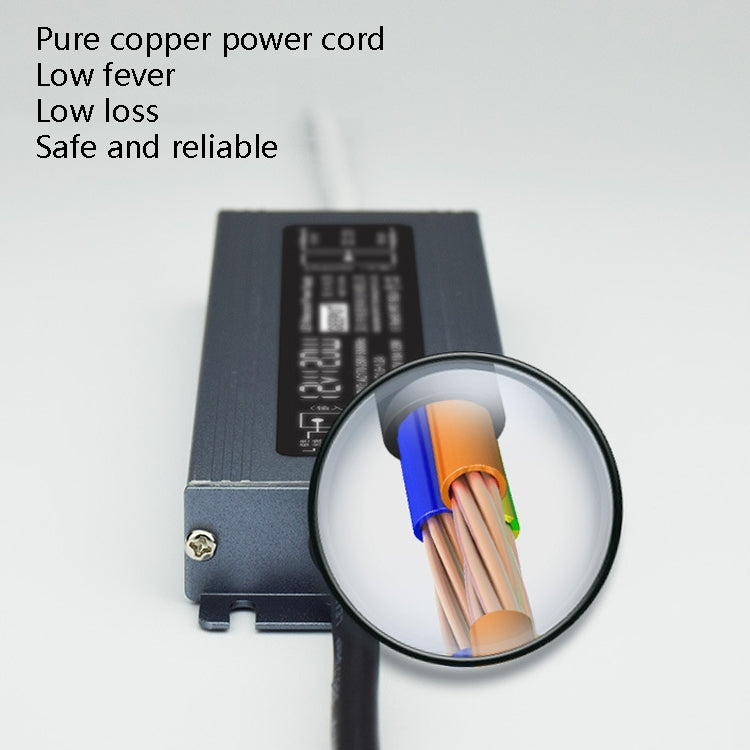

3. Pure copper power cord, low heat, low loss, safe and reliable

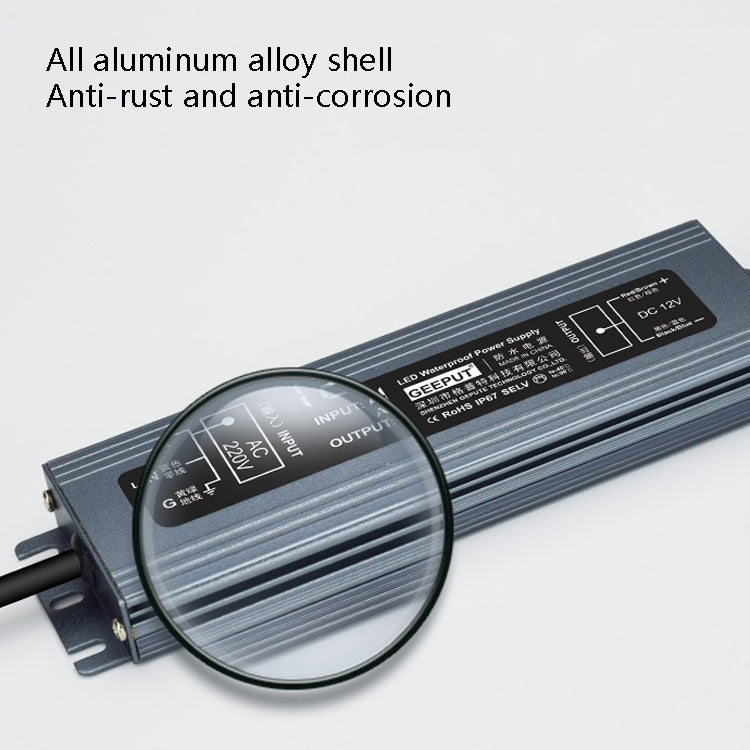

4. All aluminum alloy shell, anti-rust and anti-corrosion
5. Simple installation, wide applicability and durability
