1. Power supply interface: Тypе-C
2. Power: 18-100W
3. Working voltage: DC9-20V
4. Temperature control range: 80-420 degrees Celsius (176-788 degrees Fahrenheit)
5. Screen: 0.91 OLED
6. Soldering iron tip: C210-K
7. Menu language: Chinese / English

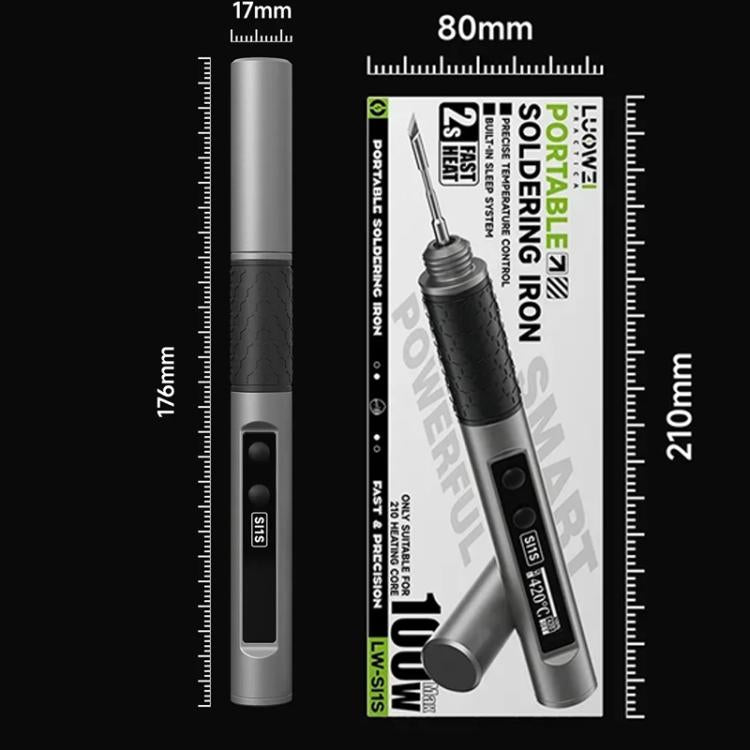

8. Size: about 17.6 x 1.7cm
9. Weight: about 127.5g
Features:
1. 100W intelligent PID control, fast tinning in 2 seconds, no need to wait
2. Inductive automatic sleep, automatic heating when picked up, and one-button standby mode to prevent dry burning
3. Temperature calibration function to ensure the stability and accuracy of welding temperature

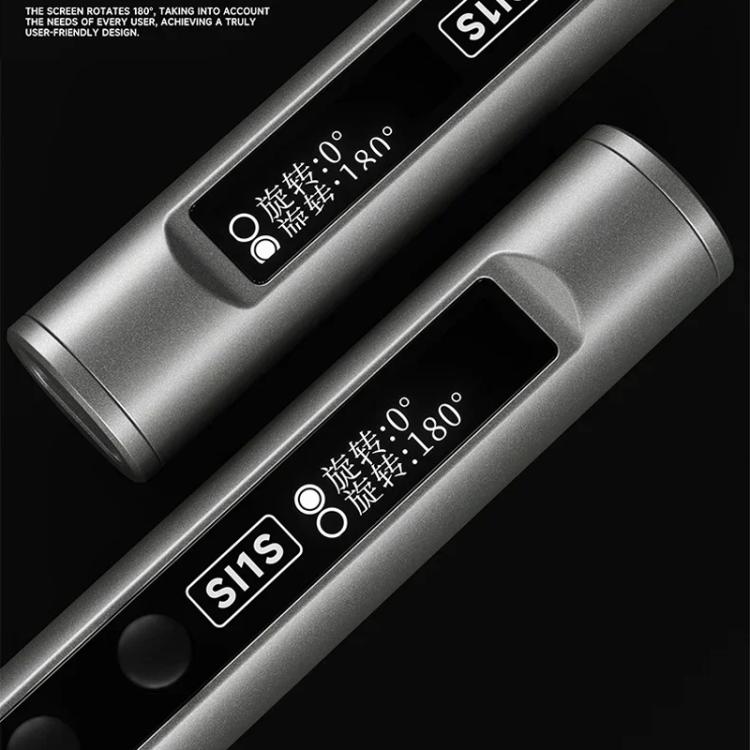

4. The screen rotates 180 degrees
5. Segmented PID temperature control, 80-420 degrees Celsius adjustable, rapid and stable heating and cooling
6. Aviation aluminum, strong heat resistance, durable and rust-proof
7. Support PD/QC 20V/5A, power 18-100W, easy to handle large and small solder joints, adaptive switching of different power outputs
Specification:
|
Package Weight
|
| One Package Weight |
0.23kgs / 0.52lb
|
| One Package Size |
23cm * 10cm * 5cm / 9.06inch * 3.94inch * 1.97inch
|
| Carton Weight |
17.10kgs / 37.70lb
|
| Carton Size |
48cm * 38cm * 34cm / 18.9inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 429 cartons * 70 pcs = 30030 pcs
40HQ: 998 cartons * 70 pcs = 69860 pcs
|
|
