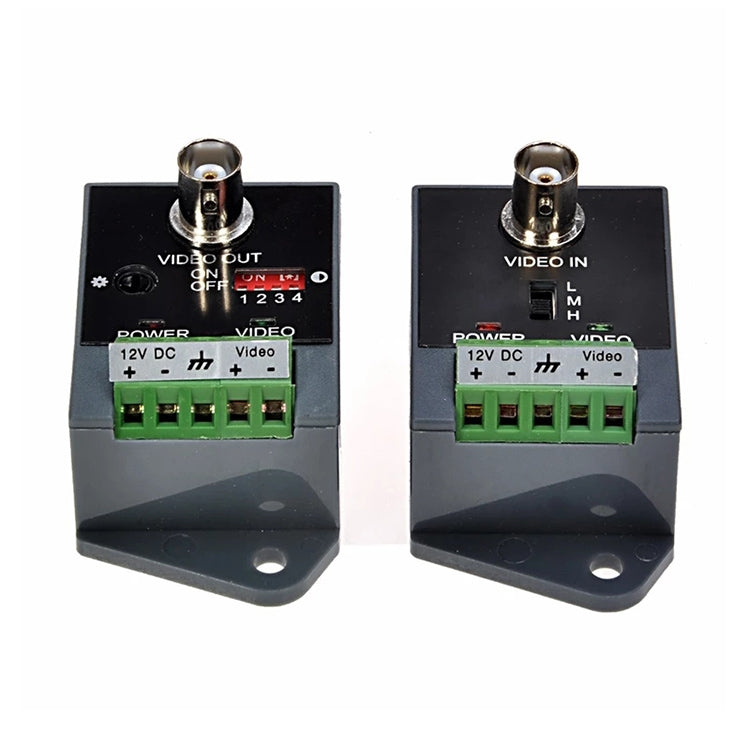

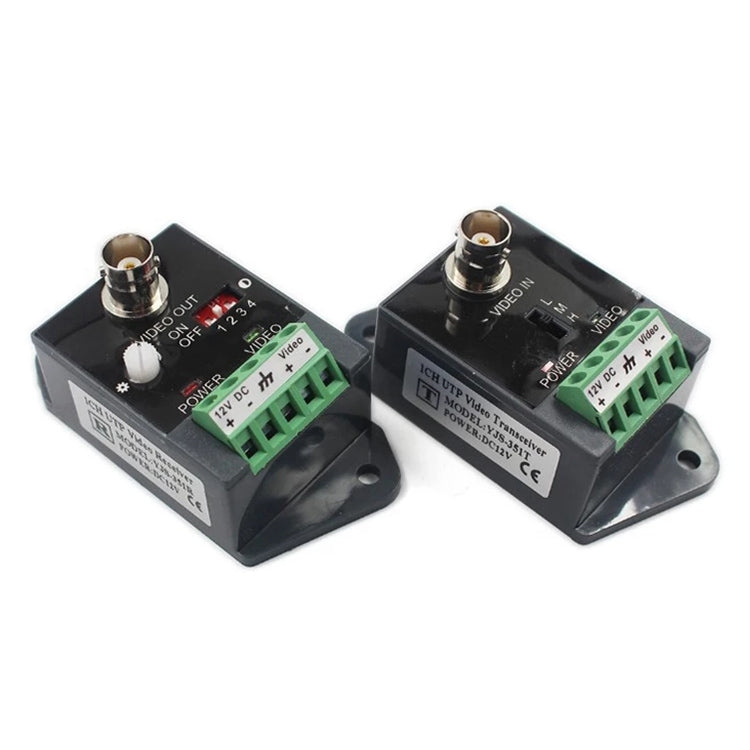

Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver

Regular price
Dhs. 66.00 AED
Regular price
Sale price
Dhs. 66.00 AED

Guaranteed safe checkout

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • Description
1. Smart Twisted Pair Video Balun are designed for CCTV signal transmission over unshielded twisted pair wire

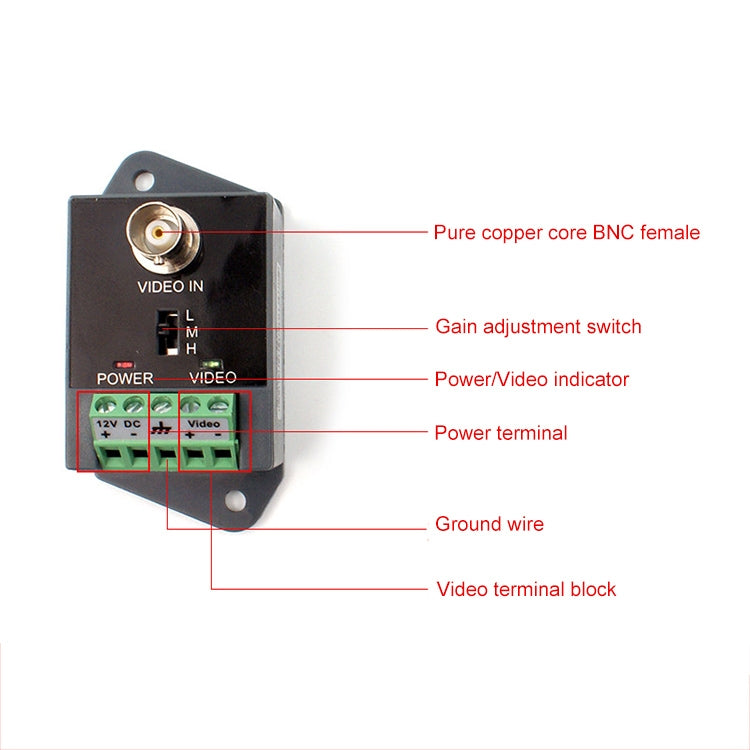

2. Three position range switch for gain select on transmitter.

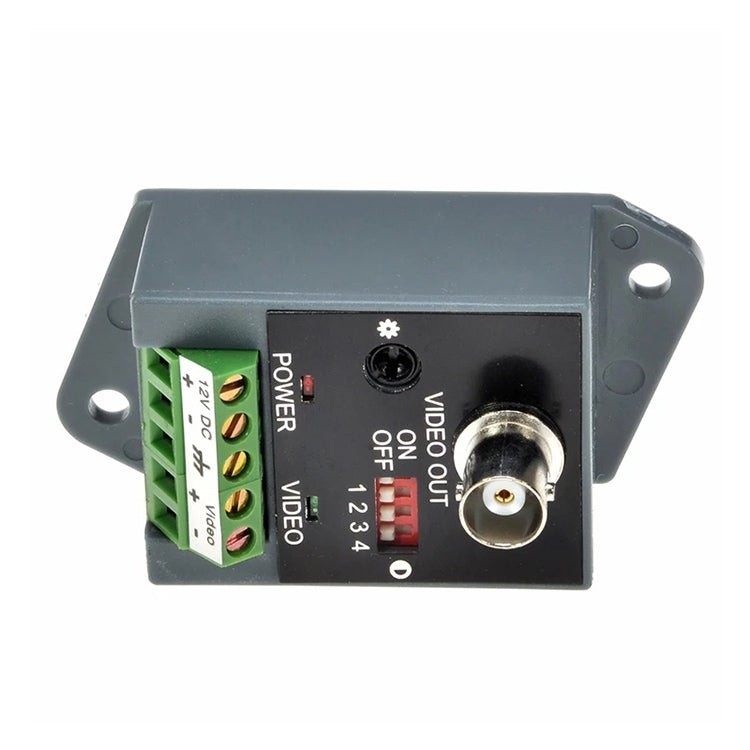

3. 4 position distance range switch on Receiver
4. UTP Video Balun with built in transient protection and ground lifting.
5. Specification of the CCTV Video Balun: single-channel
6. Frequency response: DC-6MHz
7. Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8. Impedance: BNC 75 Ohms
9. UTP/connector: 100 Ohms or RJ-45 100 Ohms
10. Environment:
- Temperature: 0 to 50 degrees Celsius
- Humidity: 0 to 95%
11. Wire type:
- Full-motion CCTV video at long distances (9,000ft / 3000M)
- Built-in linearity, sharpness and charoma control
- Enable unparalleled common interference rejection

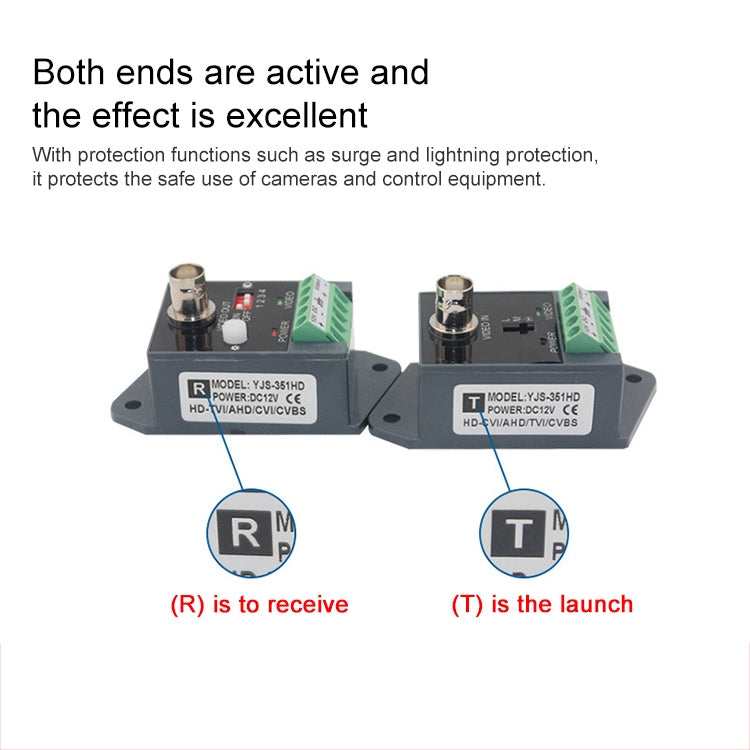

- Built-in transient protection
- Improve the picture definition when connet to DVR or Quad, and reduce noise affects
- Dimensions: 76 x 40 x 26mm


Specification:
Package Weight
One Package Weight 0.13kgs / 0.29lb
Qty per Carton 60
Carton Weight 8.70kgs / 19.18lb
Carton Size 46cm * 30cm * 30cm / 18.11inch * 11.81inch * 11.81inch
Loading Container 20GP: 644 cartons * 60 pcs = 38640 pcs
40HQ: 1495 cartons * 60 pcs = 89700 pcs
