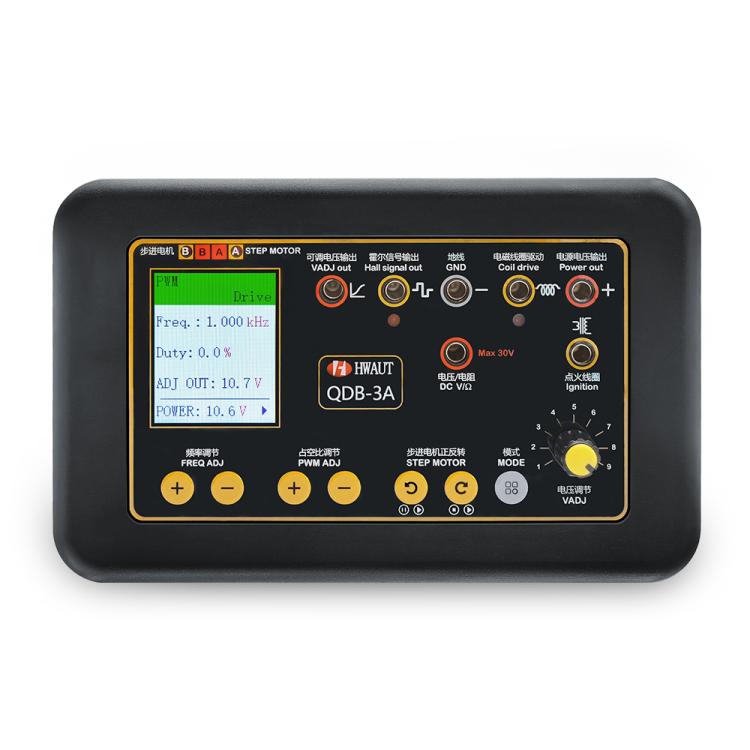

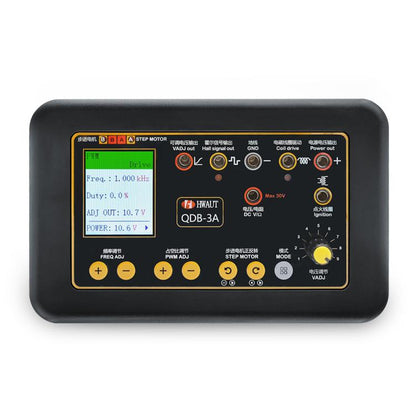

QDB-3A Drive Detector High Voltage Ignition Coil Injector Solenoid Valve(Black)
QDB-3A Drive Detector High Voltage Ignition Coil Injector Solenoid Valve(Black)
سعر عادي
Dhs. 126.00 AED
سعر عادي
Dhs. 227.00 AED
سعر البيع
Dhs. 126.00 AED
الضرائب المدرجة.
يتم احتساب الشحن عند الخروج.
كمية
تعذر تحميل مدى توفر الطلب
Feature:

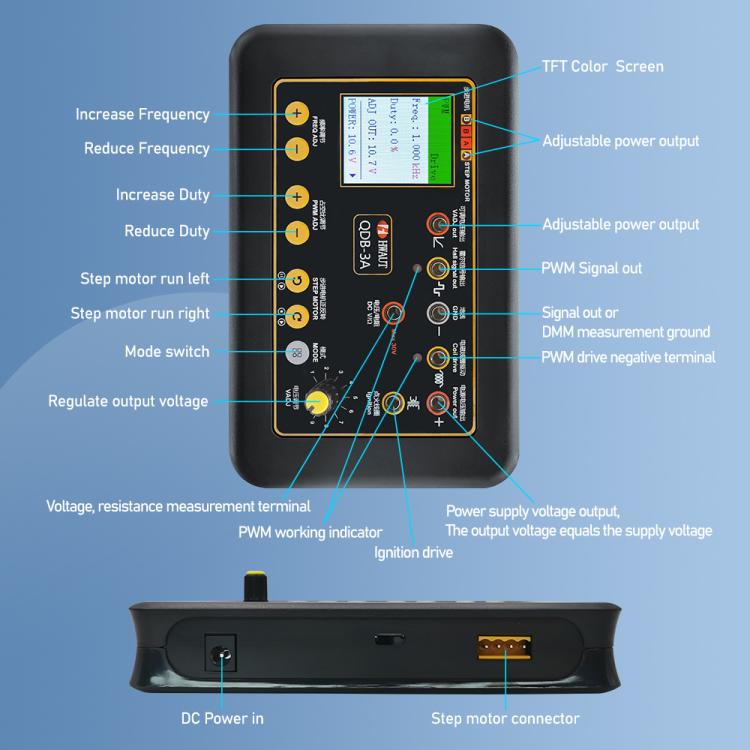

1. This diagnostic tool serves as an ignition coil tester, injector tester, and stepper motor tester, catering to a wide range of automotive diagnostic needs.
2. 1.8 inch Color display: Multiple functions can be fully displayed on one screen, and the color screen can display various parameters more humanely.
3. Adds a multimeter function that can measure resistance and voltage, which is helpful for judg-ing the quality of components.
4. The step motor drive current increases. Improve PWM driving to avoid damage to test components. DC/DC power supply to reduce heat generation.

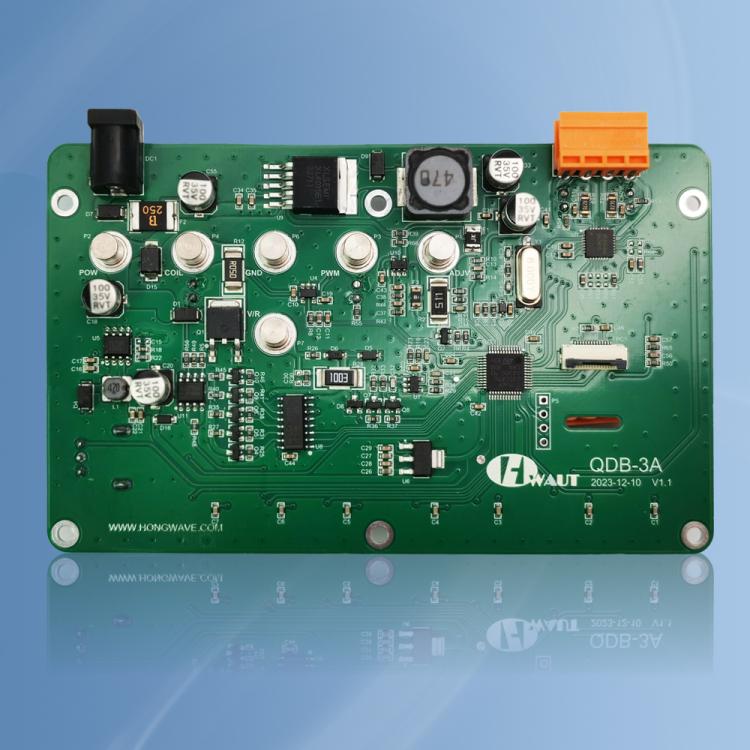

5. The new solution uses a 32-bit ARM chip, which can control all function outputs and collect various parameters.Output can be shut down in case of overcurrent.
Parameter:
1. Power In: DC 9~24V /100W
2. Power Out: Current: Max 2.5A
3. VADJ Out: Voltage:1.25V~14.5V, Current: Max 1.5A
4. DMM: DCV:0~30V, DCR:0~1M ohm
5. PWM Signal: Frequency:1~100KHz, Duty:0.0~100%, VPP:1.25V~14.5V
6. PWM Drive: Frequency:1~100KHz, Duty:0.0~100%, Current: Max 3A
7. Step Motor: Max 1.5A
8. Operating Temperature: 0~55 degree Celsius
1. This diagnostic tool serves as an ignition coil tester, injector tester, and stepper motor tester, catering to a wide range of automotive diagnostic needs.
2. 1.8 inch Color display: Multiple functions can be fully displayed on one screen, and the color screen can display various parameters more humanely.
3. Adds a multimeter function that can measure resistance and voltage, which is helpful for judg-ing the quality of components.
4. The step motor drive current increases. Improve PWM driving to avoid damage to test components. DC/DC power supply to reduce heat generation.
5. The new solution uses a 32-bit ARM chip, which can control all function outputs and collect various parameters.Output can be shut down in case of overcurrent.
Parameter:
1. Power In: DC 9~24V /100W
2. Power Out: Current: Max 2.5A
3. VADJ Out: Voltage:1.25V~14.5V, Current: Max 1.5A
4. DMM: DCV:0~30V, DCR:0~1M ohm
5. PWM Signal: Frequency:1~100KHz, Duty:0.0~100%, VPP:1.25V~14.5V
6. PWM Drive: Frequency:1~100KHz, Duty:0.0~100%, Current: Max 3A
7. Step Motor: Max 1.5A
8. Operating Temperature: 0~55 degree Celsius
Specification:
| Package Weight |
|
