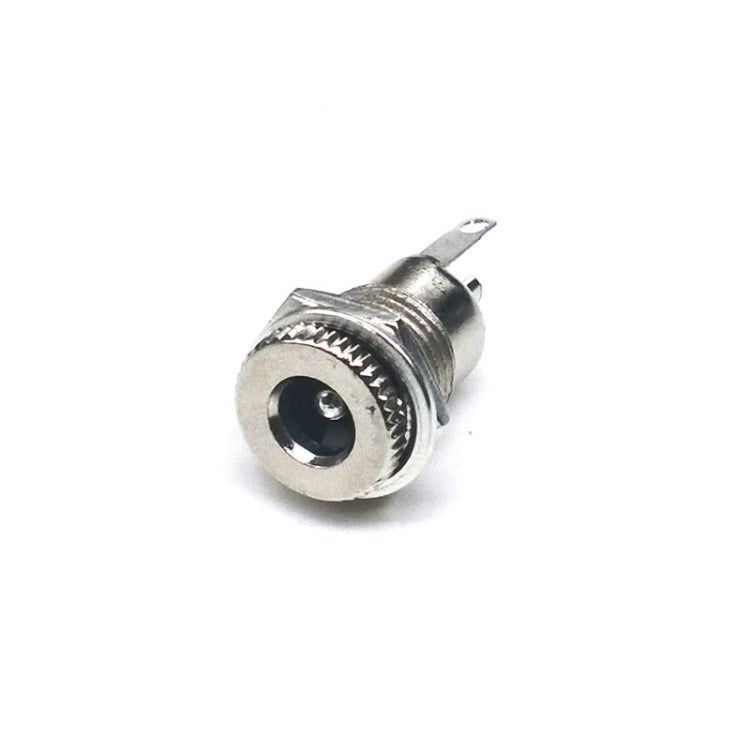

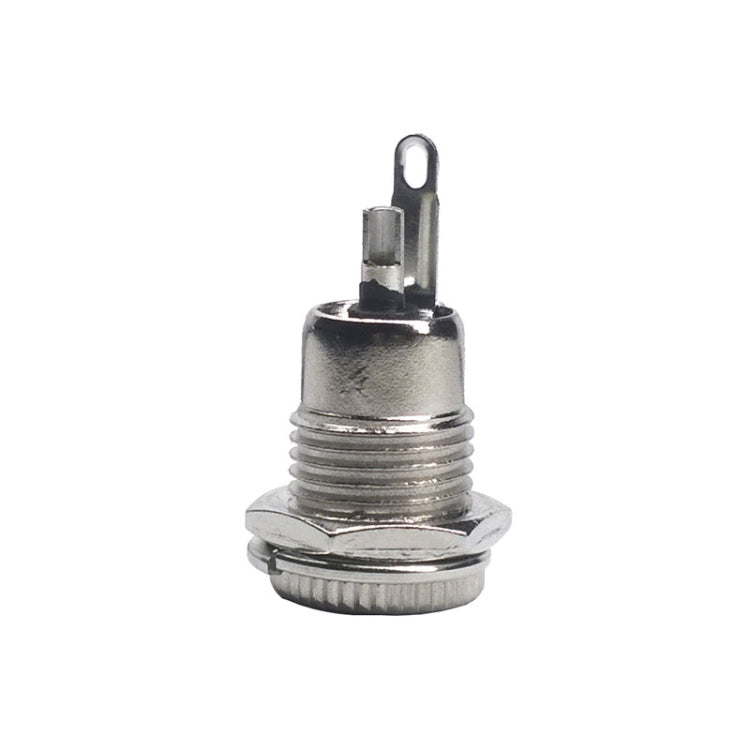

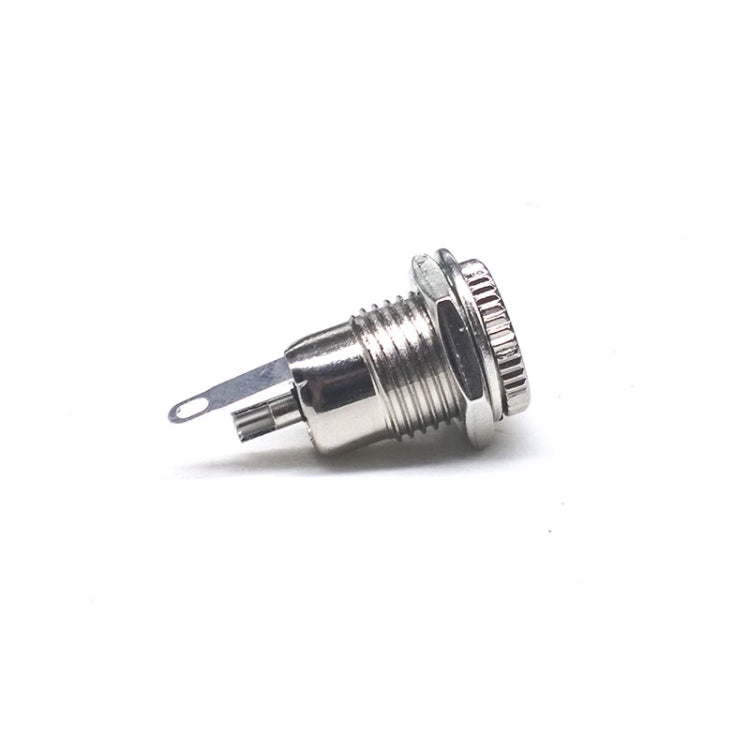

10 PCS DC099 5.5x2.1 Power Jack Socket Female Panel Mount Connector(5.5x2.1)

10 PCS DC099 5.5x2.1 Power Jack Socket Female Panel Mount Connector(5.5x2.1)

$2.27 USD
$2.27 USD
Promoção Esgotado
Frete calculado no checkout.

1. Model:DC099
2.Metal Material:Metal
3.Operating temperature range:-30-70 Degrees Celsius
4.Rated load: DC 30V 5A
5.Contact resistance :≤0.03Ω
6. Insulation resistance:≥100MΩ
7.Withstand voltage:AC 500V (50Hz) / min
8.Insertion and extraction force:3-20N


Specification:
Package Weight
One Package Weight 0.02kgs / 0.04lb
One Package Size 10cm * 10cm * 3cm / 3.94inch * 3.94inch * 1.18inch
Qty per Carton 510
Carton Weight 8.00kgs / 17.64lb
Carton Size 30cm * 30cm * 44.4cm / 11.81inch * 11.81inch * 17.48inch
Loading Container 20GP: 667 cartons * 510 pcs = 340170 pcs
40HQ: 1549 cartons * 510 pcs = 789990 pcs
